Product Performance Table
Manufacturer	Granduse	Product Name	Activated carbon filter media	Model	HDFK550M	Date	April 25, 2022
Serial No.	project Item	Unit	TDS	Actual Measured Value		Reference Standard
1	Basis Weight	g/㎡	550±8%	550		ISO9073-1
				542
				558
2	Thickness	mm	1.3±0.1	1.25		ISO9073-2
				1.3
				1.33
3	Pressure Drop	Pa	≤15	12		ISO16900-3 (32L/min5.33cm/s) (TSI8130A/8130)
				10
				13
4	Filter Efficiency	%	≥60	75		ISO16900-3 (32L/min5.33cm/s) (TSI8130A/8130)
				78
				72
5	Ventilation Permeability	L/㎡.S	≥700	850		ISO9273 200Pa, 20cm²
				874
				826

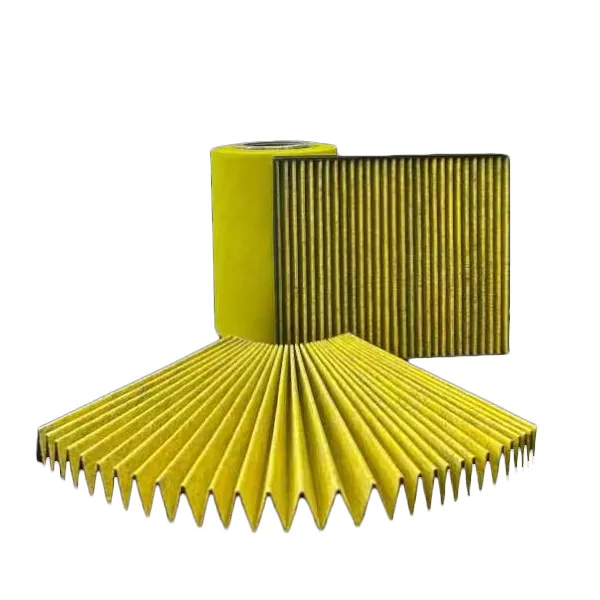

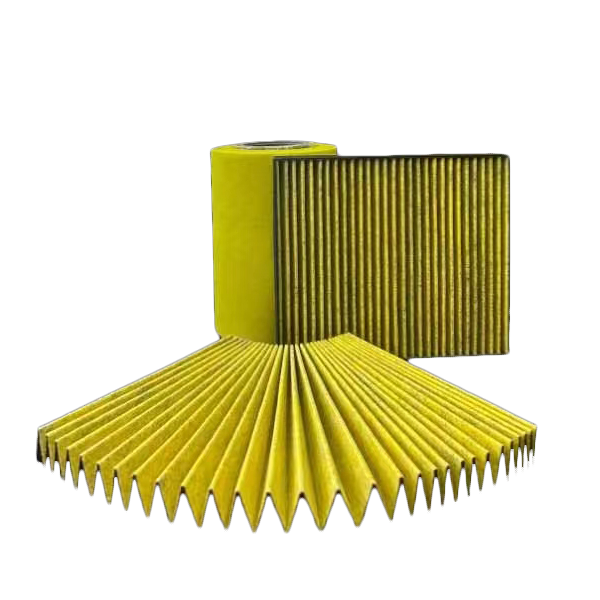

Yellow long-fiber carbon cloth
