characteristic:
1. High-efficiency structure with low resistance and high dust holding capacity;
2. It has strong heat resistance and good adsorption properties; it also has a high CADR value.
3. Effectively adsorbs various harmful gases and organic gases in the air;
4. The material has superior filtration properties.
All materials have passed safety certifications from national authoritative institutions, such as RoHS/REACH, oral testing, and skin irritation testing.

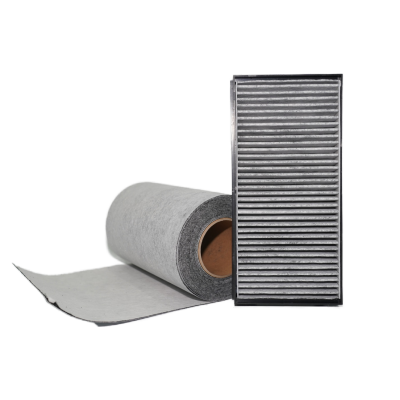

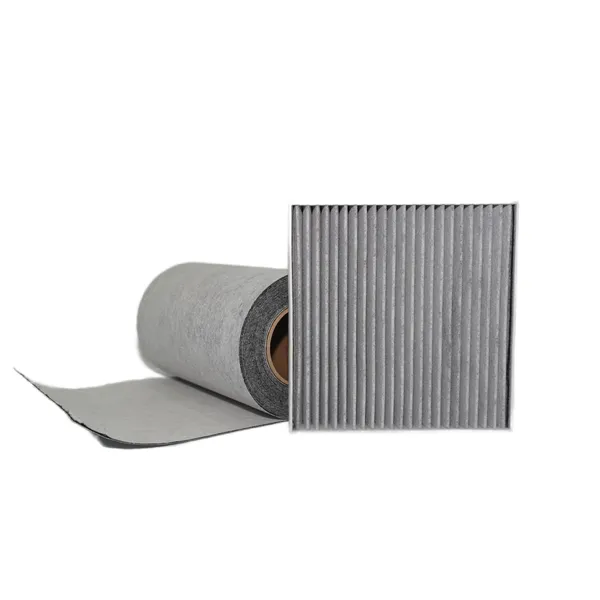

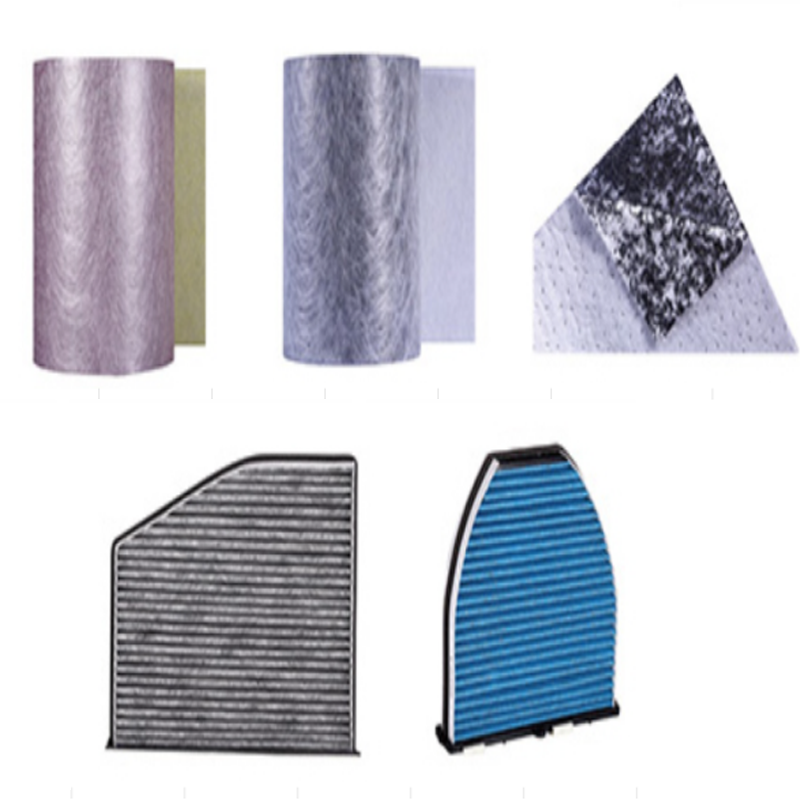

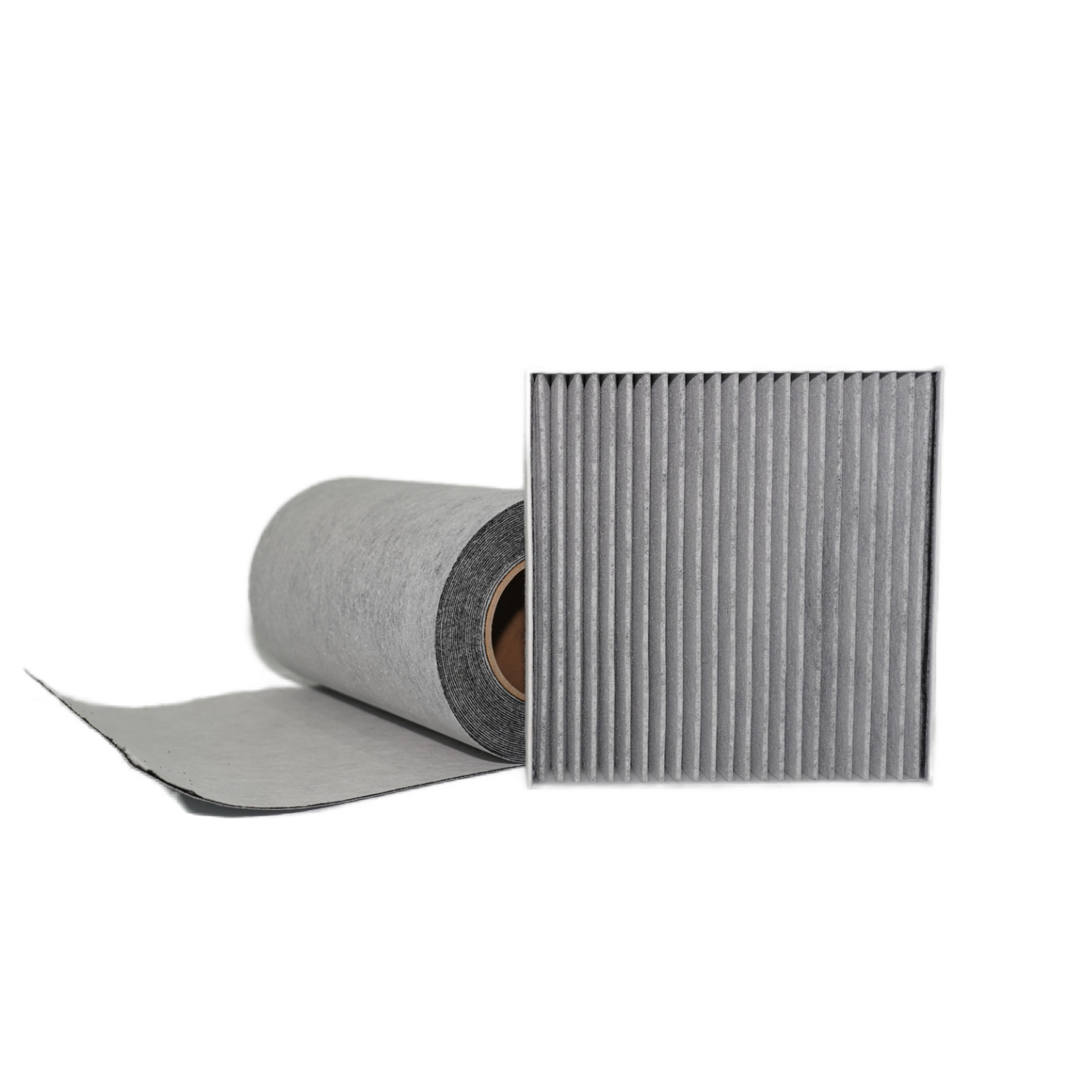

Application of automotive air conditioning filter materials

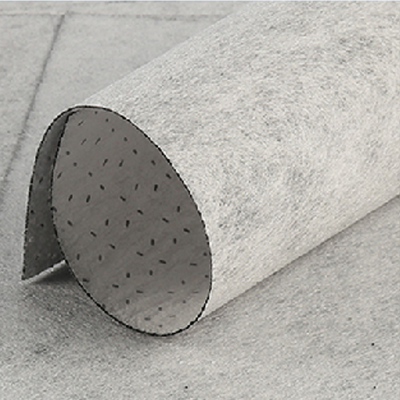

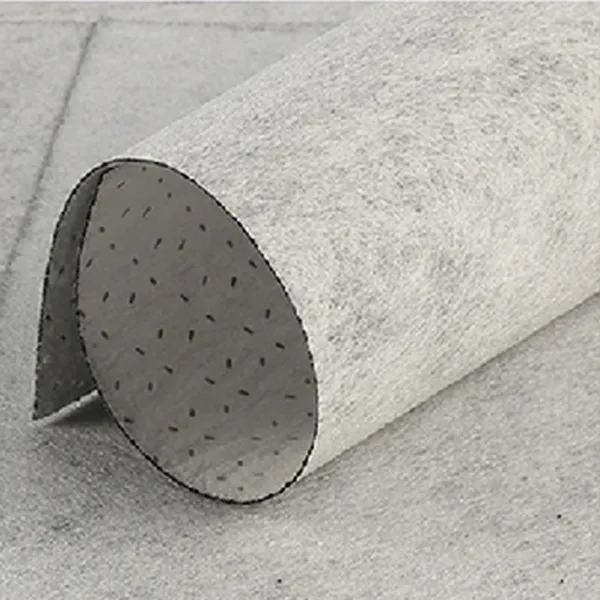

Product Name: Electrostatic Cotton Activated Carbon Cloth
Structure: PET support layer + modified carbon + electrostatic cotton → composite
Model: HMFA430-P (7.5pa, 90%, 32L)
Vehicle type: All types of vehicles
Gas adsorption performance
Gas adsorption performance QC/T 998-2023 | ||||
Experimental Project | 0min | 1min | 5min
| Poison capacity |
n-Butane | ≥60% | ≥50% | ≥20%
| 0.8g |
Toluene | ≥80% | ≥77% | ≥72%
| 13g |
Sulfur dioxide | ≥75% | ≥50% | ≥30%
| 1.85g |
Filtration grade/differential pressure | ||||
Particle size | 0.3μm | 0.5μm | 3 μm | 10μm |
Efficiency (Nacl) | 95% | 97% | 99.97% | 99.98% |
air volume | 150m'/h | 300m'/h
| 500m'/h | 600m'/h |
pressure drop | 33pa | 88.1pa | 183pa | 242pa |
300 m³/h, +200 Pa, Arizona (A2 Grey) = 33 G | ||||
